Horizontaltype, Rolling Barrel Type, Vertical Type, Screw Type color mixer
Horizontaltype, Rolling Barrel Type, Vertical Type, Screw Type color mixer
Others Machines
Horizontaltype, Rolling Barrel Type, Vertical Type, Screw Type color mixer
sr-100kg-h

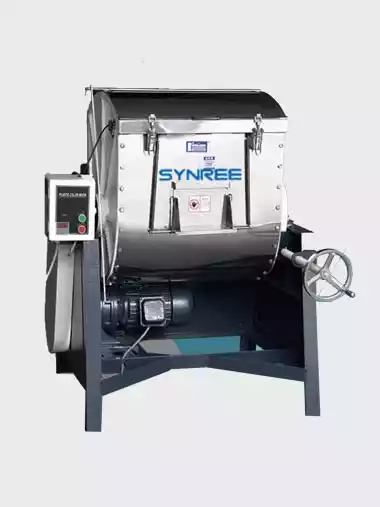

Horizontal color-mixer
More imported elements, long using life, promote quality stability.
Both mixing pail and vane are made of stainless steel, easy to clean and absolutely no pollution, Time setting can be controlled easily and precisely in the range of 0-15 minutes.
- The chain safety device can protect the safety of operator and machine
- The material is thick, strong and durable
- Well-distributed mixing can be done in a shot time, low energy consumption and high efficiency
- Material outlet amounted manual discharging board. convenient for discharging
- Machine feet welt with machine body, a firm struture.
- The standing color mixer can be equipped universal feet wheel and brake, convenient for moving
| Type | Model | Power | Motor Power | Mixing Capacity | External Size | Weight |
|
|
| V | Kw | Kg/min | Mm | kg |
| Horizontal Type | SR-100kg(H) | 380V50HZ 30 220V60HZ 30 | 3 | 100/3 | 1150x800x1300 | 280 |
| SR585-150kg(H) | 4 | 150/3 | 1400x800x1300 | 398 | ||
| SR-200kg(H) | 4 | 200/3 | 1376x750x1465 | 468 | ||
| Rolling Barrel Type | SR-50kg(R) | 0.75 | 50/3 | 820x950x1300 | 120 | |
| SR-100kg(R) | 1.5 | 100/3 | 1100x1100x1450 | 155 | ||
| Vertical Type | SR-50kg(V) | 1.5 | 50/3 | 860x740x1110 | 150 | |
| SR-100kg(V) | 3 | 100/3 | 960x1000x1200 | 230 | ||
| SR-150kg(V) | 4 | 150/3 | 1080x1080x1300 | 250 | ||
| SR-200kg(V) | 5.5 | 200/3 | 1400x1200x1550 | 280 | ||
| Screw Type | SR-500kg(S) | 4 | 500/10 | 1700x1300x2600 | 400 | |
| SR-1000kg(S) | 5.5 | 1000/10 | 1800x1600x2800 | 800 | ||
| SR-2000kg(S) | 5.5 | 2000/10 | 2250x2200x3200 | 1000 |
