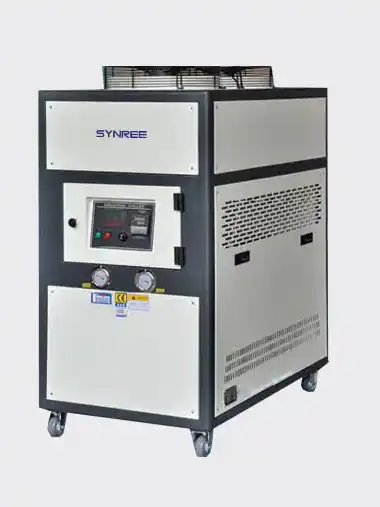

Air Cooled Cased Industrial Chiller

sr-10aci

Air cooled cased chiller with board type evaporator is suitable for the district of lack of water resource and district of poor water quality

Compressor is used “COPELAND” brand which made in the USA.
The industrial chiller is specially designed on purpose to be used in the plastic manufacturing industry.
This equipment can greatly raise the working efficiency of manufacturing machines and obviously improve the quality
of products and thus,earnmore profit.

Applied Machinery:

Cooling system of oil temperature, ultrasonic, high frequency machinery.
Cooling system of injection molding machinery. Cooling system of blow molding machinery.
Cooling system of extruder.

Download Catalog

Features
Additional Info

The inside safety protection can guarantee the long lasting of the chiller well. The pump is used made in Taiwan and all parts of cooling system are imported from the USA. Mexico, Denmark and Japan
Equipped with shellpipe condenser and stainless steel cased evaporator, which are quite easy to be cleaned and maintained.Equipped with automatic water supply device in the water-tank.
Larger than model XC-20 are assembled 2 sets or 4 sets of compressors, so they are able to used as separate or together to reduce the resource waste
Complete with safety protection and error indication system, including compressor over load, protection, pump over load protection, high pressure and low pressure protection and phase failure protection
Equipped with figure intellectualized temperature controls, which can accurately measure and control water temperature within the range of 5°C-35°C

Additional Equipment For Option

Starter of timer switch.
Large type of water filter.
Protection switch for prove
the electric leakage.
Cooling tower and pump.

Parameters:

Specifications	Unit	SR-01ACI	SR-03ACI	SR-05ACI	SR-08ACI	SR-10ACI	SR-12ACI	SR-15ACI	SR-20ACI	SR-25ACI	SR-30ACI	SR-40ACI	SR-50ACI	SR-100ACI
Cooling capacity	Kcal/h	2300	6800	12040	19000	25200	34400	37000	45000	54000	76600	92800	113000	243000
Compressor		All-closed Vorticity												Screw bar compressor
Compressor power	Kw	0.8	2.5	4.4	7	9	10.2	13.4	18	20.4	26.8	35	40	74
Refrigerant		R22 (R407, R502)
Chilled water pump power	Kw	0.37	0.37	0.75	0.75	1.5	1.5	2.2	2.2	2.2	4	7.5	7.5	8
Max flow rate of chilled water	L/min	90	90	115	115	123	217	315	315	315	400	600	600	900
Max pressure	m	22	22	28	28	22	25	25	26	26	50	55	55	60
Flow water inlet and outlet pipe		1"	1"	1"	1"	1.5	1.5"	1.5"	1.5"	1.5"	2.5"	3"	3"	5"
Cooling fan power	Kw	0.1	0.25	0.5	0.5	0.5	0.5	1	1.5	1.5	1.5	3.2	3.2	5
Size length	mm	680	1030	1100	1220	1220	1220	1220	1700	1980	1900	2000	2000	3600
Size width	mm	460	680	700	800	930	930	1050	1100	1160	1200	1200	1200	1800
Size height	mm	840	1270	1400	1450	1600	1600	1600	1920	1920	2000	2100	2100	1800
Water tank capa.	L	20	53	88	120	200	200	240	380	380	Non-water box (dry-type)
Weight	Kg	35	180	240	300	360	380	460	680	700	820	1100	1400	2800
