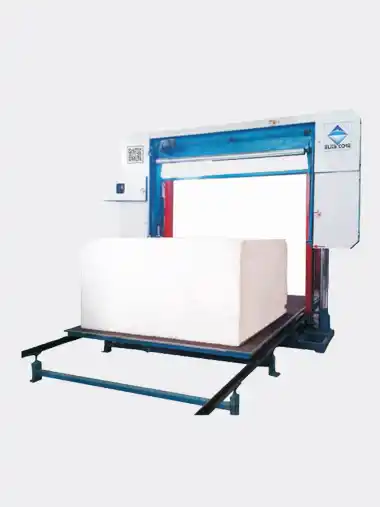

The Automatic Horizontal Cutting Machine ECMT-104/105 is a Fully Automatic machine for cutting and stacking of flexible foam and open-celled P.V.C. foam. The cu achine for cutting and stacking of flexible foam and open-celled P.V.C. foam. The cut off foam slice is no need of being taken away from working table after each cutting. Depending upon cutting thickness and foam density, This machine matched with PressRoller which is good for High Thickness Sheets Cutting for Foam Mattres use,the cutting angle of the knife guidance can be adjusted from 0° to 5°.
SR-104
Cutting Foam Size: | W1650mm*L2000mm |
Cutting Foam Height | H1200mm |
Cutting Thickness | 2mm Up |
Cutting Speed | 0~50m/min(Adjustable) |
Blade Length: | L9060mm*W30mm*T0.45mm |
Cutting Type | Full automatic touch screen +PLC control & With Press-Roller |
Blade Tension System | Choose Available |
Machine N,W | 2100kg |
Total Motor Power | 8.12kw |
Floor Space | L5800mm*W3600mm*H2400mm |
SR-105
Cutting Foam Size | W2150mm*L3000mm |
Cutting Foam Height | H1200mm |
Cutting Thickness | 2mm Up |
Cutting Speed | 0~50m/min(Adjustable) |
Blade Length: | L10060mm*W30mm*T0.45mm |
Cutting Type | Full automatic touch screen +PLC control & With Press-Roller |
Blade Tension System | Choose Available |
Machine N,W | 2300kg |
Total Motor Power | 8.12kw |
Floor Space | L7800mm*W4500mm*H2400mm |
