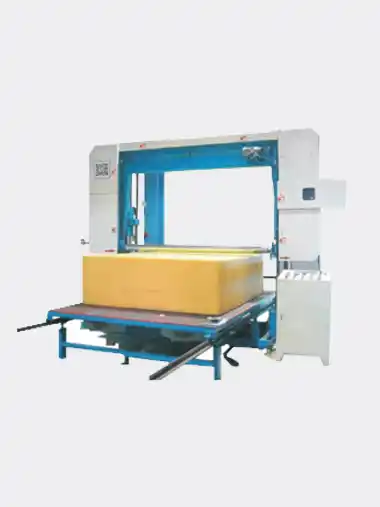

The Automatic Horizontal Cutting Machine SR-104B/105B is a Fully Automatic machine for cutting and stacking of flexible foam and open-celled P.V.C. foam. The cut off foam slice is no need of being taken away from working table after each cutting. Depending upon cutting thickness and foam density, This machine matched with Press-Roller And Vacuum System which is good for High Thickness Sheets Cutting for Foam Mattress use, the cutting angle of the knife guidance can be adjusted from 0° to 5°.
Specification
Cutting Foam Size: | W1650mm*L2000mm |
Cutting Foam Height | H1200mm |
Cutting Thickness | 2mm Up |
Cutting Speed | 0~50m/min(Adjustable) |
Blade Length: | L9060mm*W30mm*T0.45mm |
Cutting Type | Full automatic touch screen+PLC control With Press-Roler & With Vacuum System |
Blade Tension System | Choose Available |
Machine N,W | 2300kg |
Total Motor Power | 15.32kw |
Floor Space | L5800mm*W3600mm*H2400mm |
Specification
Cutting Foam Size: | W2150mm*L3000mm |
Cutting Foam Height | H1200mm |
Cutting Thickness | 2mm Up |
Cutting Speed | 0~50m/min(Adjustable) |
Blade Length: | L10060mm*W30mm*T0.45mm |
Cutting Type | Full automatic touch screen+PLC control With Press-Roler & With Vacuum System |
Blade Tension System | Choose Available |
Machine N,W | 2500kg |
Total Motor Power | 15.32kw |
Floor Space | L7800mm*W4500mm*H2400mm |
