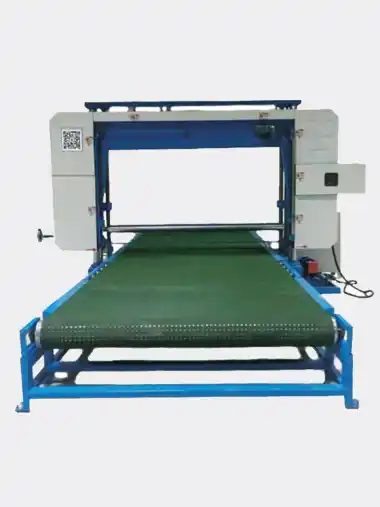

Automatic Horizontal Foam Cutting Machine(Conveyor Belt + Vacuum System)
Automatic Horizontal Foam Cutting Machine(Conveyor Belt + Vacuum System)
Foam Machine
Automatic Horizontal Foam Cutting Machine(Conveyor Belt + Vacuum System)
SR-135-136
This Machine Adopts Conveyor Belt And Heavy Duty Vacuum System Which is For Foam Block Sheets High Precision Cutting, It Can Make Each Cutting More Smoothly,High Precision Cutting, Low Noise And Running More Stable.
SR-135
| Cutting Foam Size | W1650mm*L2000mm |
| Cutting Foam Height | H1200mm |
| Cutting Thickness | 2mm Up |
| Cutting Speed | 0-30m/min(Adjustable) |
| Blade Length: | L9060mm*W30mm*T0.45mm |
| Cutting Type | Full automatic touch screen +Press roller+Conveyor Belt |
| Vacuum System | Available |
| Blade Tension System | Choose Available |
| Machine N,W | 2800kg |
| Total Motor Power | 11.72kw |
| Floor Space | L5000mm*W4000mm*H2400mm |
SR-136
| Cutting Foam Size | W2150mm*L3000mm |
| Cutting Foam Height | H1200mm |
| Cutting Thickness | 2mm Up |
| Cutting Speed | 0-30m/min(Adjustable) |
| Blade Length: | L10060mm*W30mm*T0.45mm |
| Cutting Type | Full automatic touch screen +Press roller+Conveyor Belt |
| Vacuum System | Available |
| Blade Tension System | Choose Available |
| Machine N,W | 3100kg |
| Total Motor Power | 11.72kw |
| Floor Space | L7000mm*W4500mm*H2400mm |
