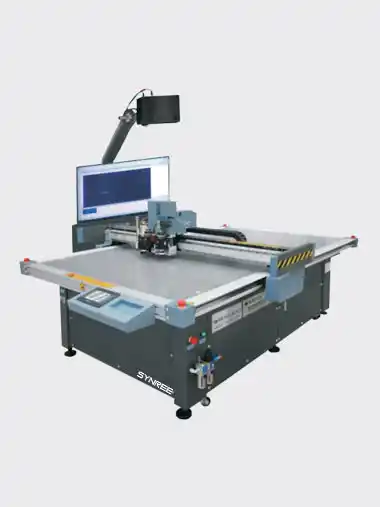

CNC Leather Cutting Machine

Cutting and Preparation Section Machines

srcut5-1813e

Through projecting the cutting patterns image with a projector, a real-time image of the patterns nesting position can be achieved. The nesting is efficient and fast, bringing time, labor and material saving.

With a broad application the machine can be used for genuine leather cutting and other soft material cutting. It has been widely applied to industries as footwear, apparel bag and case, automobile and decoration, etc.

Download Catalog

Features
Additional Info

It meets the production target with small-batch production, many orders and various patterns.
With adopting programmable multi spindle linkage controller, the stability and operability has reached an advanced level at home and abroad.
The gearing system of the cutting machine was adopted imported linear guide,gear rack and synchronous belt. The cutting accuracy reaches to zero error of to and back from origin point.
The HMI is a friendly High Definition touch screen, which is convenient and easy for learning and operation.

Model	SRCUT5-1813E
Effective working area	1800mm*1300mm
Cutting speed	100-1200mm/s
Cutting thickness	0.1-50mm
Machine / Working voltage frequency	AC 220+22V 50+1HZ/60+x1HZ
Air Pump / Working voltage frequency	AC 380V + 38V 7.5KW
Cutting materials	Corrugated board,cardboard, white board,gray board, sticker, PVCF fil,.expoxy resin board, artificial leather, leather,gasket,sponge, prepreg, fabric,acrylic,honey comb board fiber board, organic glass,car mat,fiber, composite material and other soft material, etc.
