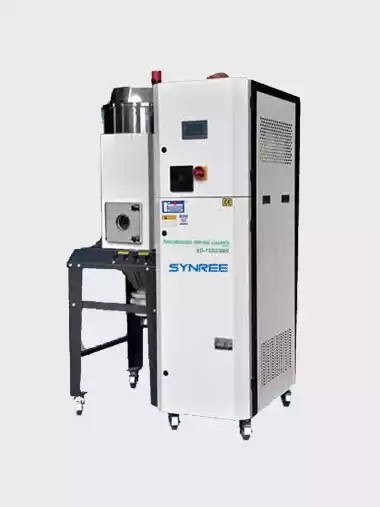

Dehumidifying, Drying And Feeding Unit (three In One)

sr-120u90h

Used for high hygroscopic engineering plastic and rubber such as PA, PC PBT, PET. etc.,
H4 and H5 ypes of can be selected according customers' demand.

Use two cooler in dehumidifying system, guarantee low temperature on air and dew-point.

XD dehunmidifying,drying and feeding unit equipped honeycomb dehumidifier. The moistureproof drying material tube adopt bottom blowinge
sign with circling air exhausting device, prevent heat energy emitting, keep temperature, improve drying effiency.The dew-point monitor indicator for customer selection, which can monitor the dew-point.

Download Catalog

Features
Additional Info

Compact in size for easy moving and the machine can be replace easily
Airtight loop feeding system, prevent the dried raw material to be re-moisture by contact external air
With built-in restrictive valve, guarantee no remained material in pipe

Parameters:

Model		Unit	SR-80u/90H	SR-120u/90H	SR-160u/120H	SR-230u/150H	SR-300u/200H	SR-450u/300H	SR-600u/400H	SR-750u/500H	SR-900u/700H	SR-1200u/700H
Drying system
Moistureproof bottom capacity		L	80	120	160	230	300	450	600	750	900	1200
Dry heater power		kw	3	6	6	7.2	12	15	18	21	24	24
Dry blow power		kw	0.55	1.1	2.2	2.2	3	3	4	5.5	5.5	5.5
Dehumidifying system
Dampproof air		m/hr	90	90	120	150	200	300	400	500	700	700
Regen heater power		kw	2.8	3.5	3.5	4	5.4	7.2	7.2	10	10	10
Regen blow power		kw	0.37	0.37	0.55	0.55	0.75	0.75	1.1	1.1	2.2	2.2
Loading system
Loader blow power		kw	1.75	1.75	1.75	1.75	2.2	2.2	2.2	2.2	2.2	2.2
Suction pipe		inch	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	2	2
Photoelectric hopper		L	6	6	6	12	12	12	12	12	12	12
Standard hopper		L	6	6	6	6	6	6	6	6	12	12
External size	Long	mm	1200	1200	1300	1500	1600	1700	1700	2100	2100	2100
	Wide	mm	1000	1000	1100	1360	1360	1400	1400	1500	1500	1500
	High	mm	1870	1870	1900	2060	2060	2300	2300	2700	2700	3200
Weight		kg	330	376	395	435	570	600	700	750	850	950
