Fabric Moisture Permeability Tester
Fabric Moisture Permeability Tester
Testing Machine

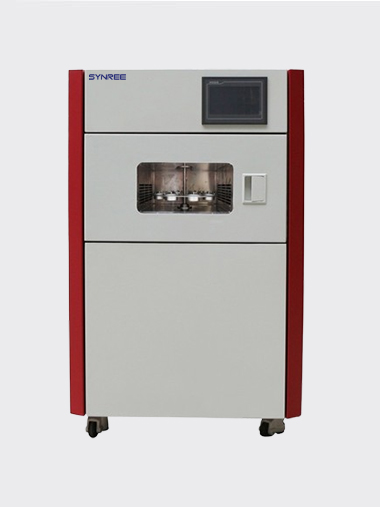

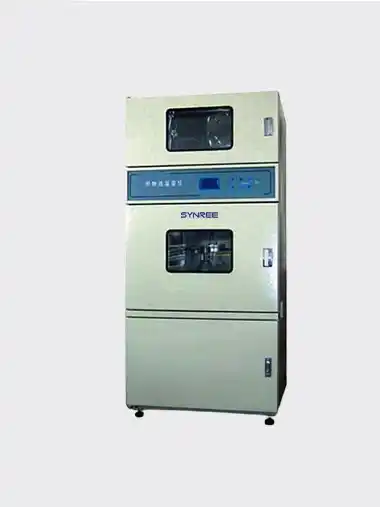

Fabric Moisture Permeability Tester
SR-5017
Used for testing the moisture permeability of all kinds of fabrics, including moisture-permeable coated fabrics and nonwoven fabrics
1.Integrated structure of Baking box and constant temperature and humidity box
2.Computer controlled, LCD Chineese menu operation
3.Flow cycle wind speed 0.02-1.5m/s, digital set
4.Imported high-precision temperature and humidity sensor, imported motor driver, ceramic pipe heating
| Working pattern | Computer control, LCD Chinese menu operation,testing environment monitoring |
| Testing box temp. control range | 20～45℃;distinguishability:0.1℃ |
| Testing box temp. control accuracy | ±0.5℃ |
| Testing box humidity control | 40%RH～95%RH±2%RH |
| Testing box humidification | ≥300ml/h |
| Drying box temp | control range:interior temp.～199℃ |
| Testing time | 1min～999h59min |
| Circulating air speed | 0.02～1.5m/s |
| Permeability area | 2827mm2 （∮60mmGB） optional 3848mm2（∮70mmASTM） |
| Number of moisture permeability cups | 6 pieces |
| Drying box size | 490×400×215mm |
| Power source | AC220V 50Hz 4kW |
| External dimension | 720×560×1570mm |
| Weight | 100kg |
:
