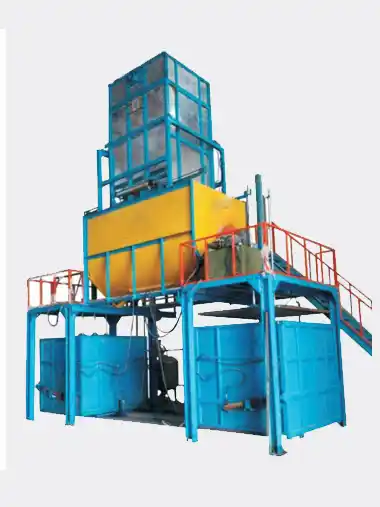

Fully-Auto Re-bonded Foam Making Machine(With Steam System)
Fully-Auto Re-bonded Foam Making Machine(With Steam System)
Foam Machine
Fully-Auto Re-bonded Foam Making Machine(With Steam System)
SR-141B
This Machine designed with Fully Auto Storage Tank System, Fully Auto Scale System, Fully Auto Chemical Feeding & Spray System, Fully Auto Double Hydraulic Press System & Fully Auto Steam System, Its for high quality rebonded foam production, Operation is simple and easy, production efficiency is very higher than normal type.
Specification
| Mixing Tank Capacity: | 12CBM |
| Output | 30~45 Blocks/day |
| Mixing Speed: | 0-50rpm |
| Mixing Motor Power: | 5.5kw |
| Oil Hydraulic Pressure: | 40Ton |
| Re-bonded Foam Density Range: | 0-120kg/CBM |
| Two Automatic Square Mould Size: | L2050mm*W1600mm*H1600mm(To Be Reuqested) |
| Auto Storage Tank System: | Dia2000mm*H6000mm |
| Option Of Auto Materials Loading System: | Storage Tanks: 100kg 1pc, Match With Chinese Pump |
| Control Type: | Automatic Electric Control. |
| Boiler Capacity | 200kg |
| Machine N.W. | 8000kg |
| Total Motor Power | 19.5kw |
| Floor Space | L9000mm*W3600mm*H7500mm |
