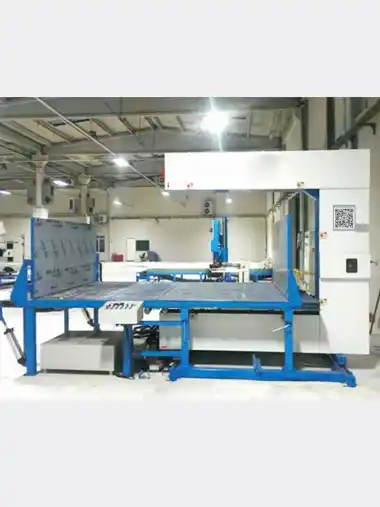

Fully-Auto Vertical Foam Cutting Machine
SR-111
This Machine is Fully Automatic Type, Adopts PLC Programmed for foam Sheets cutting.
Specification
| Inner Table Size | W2150mm*L2440mm |
| Outer Table Size | W2150mm*L2440mm |
| Cutting Foam Size | L2100mm*W2100mm*H1200mm |
| Cutting Foam Height | H1200mm |
| Cutting Thickness | 3mm Up |
| Blade Length | L9930mm*W15mm*T0.45mm |
| Baffle Travel Distance | W2050mm |
| Inner/Outer Baffle Height | H1000mm |
| Frame Cutter Frame Moving Speed | 0~30m/min |
| Blade Tension System | Choose Available |
| Machine N.W | 2200kg |
| Total Motor Power | 7.2kw |
| Floor Space | L3700mm W5700mm*H2900mm |
