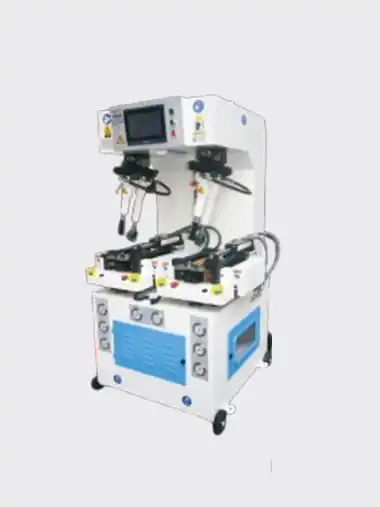

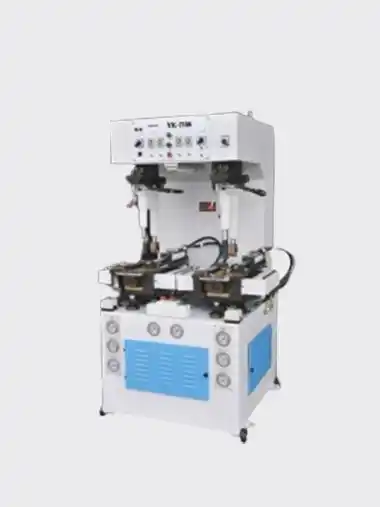

Heavy-duty Walled Sole Attaching Machine

Shoe Machine Manufacture & Supplier

SR-10A/712A

There is a prepared oil tank to supplement oil when cylinder rising which makes the rising faster and saves the operation time to increase benefit.
When the mechanism of front rear pressing reduces, a special circuit device is adopted to control the receding stroke, and the proper receding distance is accordingly for location different sizes of shoes.
Independent pressure adjustment handle in the front of machine.

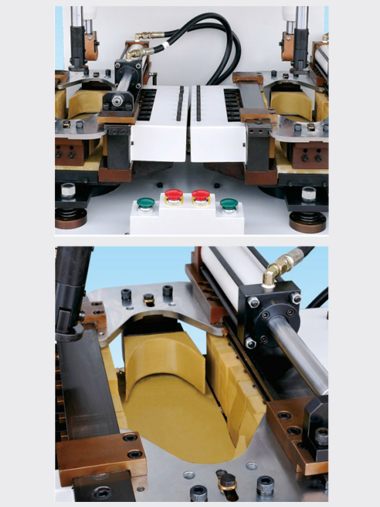

Pressure level adopts special design of bias swing, high and low adjustment and poise of oil thinking, which makes shoes convinent in fetching, smooth on surface, free from damage and high in efficiency and good in quality. And its convinent to put and take out of thelast as well.
This machine is available to press shoes with lasts between 130mm and 400mm in length which including the press mold below 150mm in width, below 200mm in height and walled outsoles below 80-65mm in height, such as jogging shoes, walled sports shoes and casual shoes.

Specification
