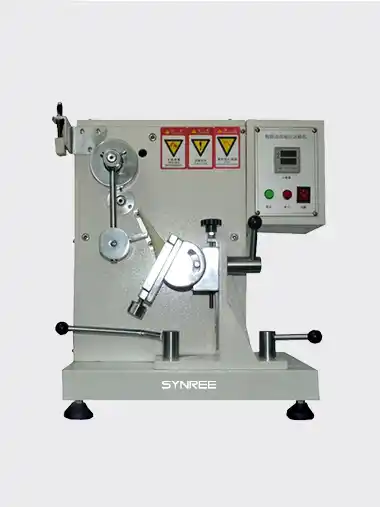

Heel continuous impact tester
SR-7027
Heel continuous impact tester is for female high-heeled and middle-heeled shoes, the red edge continuous
impact heel in a certain energy and frequency until the heel cracking, Through it to know the withstand impact index of heel, and determine the durable quality of heel.
Corresponding standard: 4.9 of BS-5131, SATRA PM20
Applicable industry: Female high-heel and middle-heel.
| Model | SR-7027 |
| Impact frequency | 60 blow/min |
| Impact energy | 0.68 J/blow |
| Swing arm | Φ12.5mm |
| Impact hammer | Φ57mm, thick 20mm |
| Testing angle | 90° |
| Specimen adjustable range | Up to down~90mm,left to righ~80mm,angle 0°~180° |
| Timer | LCD, 0~999,999 |
| Volume-host machine | 50×45×50cm |
| Volume-control box | 18×21×20 cm |
| Weight | 69kg |
| Power | 1ζ, AC220V, 3A |
