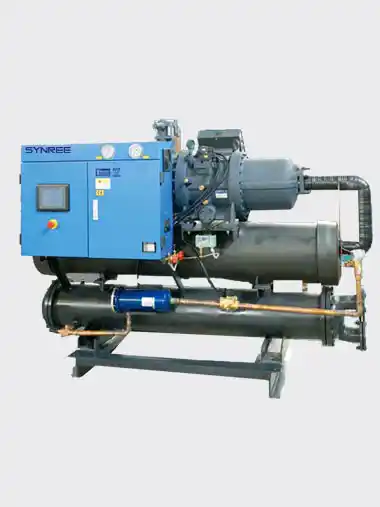

Screw Style Chiller

sr-60wcs

Is applicable to R22, R407, R134a and other refrigerant.High efficiency horizontal shell and tube condenser and evaporator have "BR1"
state permission to create pressure vessel,heat stability and maintenance convenience. Advanced micro-computer controller, a powerful, high-speed
embedded microprocessor performance is much higher than similar products used in the single-chip machine.

Download Catalog

Features
Additional Info

Germany semi-hermetic screw compressors, bearings longevity will ensure long-term operation;
Double-conditioning compressor energy, follow customer demand made adjustments to achieve energy saving effect;
Condenser and evaporator meet national needs, the highly efficient heat exchanger performance, and maintenance convenience;
Controller dilate in good condition and can facilitate the expansion and upgrading of hardware and procedures;
Watchdog technology to the micro-computer controller hardware components with self-diagnostic capabilities, automated troubleshooting:
Equipped with the high stability of memory, storage capacity of 512K procedures interfacing to the power outages and maintain data capacity, and also a substantial loss of data storage:
Sieve Protection System, which allow for a unique auditorium Sieve life span of 10 years or more.
Inquiries can be functional fault by fault and statistics serial number of failures occurred and to analyze the causes for failure to be improved;
Actual temperature and can be done at any time to check points set changes, in addition to an hour and a one-day show on the temperature curve;
Machine with remote control switches can be realized by a timer switch planes and weekly machine timer switch applications. Switching planes can be set up 3 per day:
Switching to support multiple languages online.

Parameters:

Model			Single Compressor Series					Double Compressor Series
Model			SR-50WCS	SR-60WCS	SR-70WCS	SR-80WCS	SR-120WCS	SR-100WCS	SR-120WCS	SR-140WCS	SR-160WCS
Rated Cooling Capacity	50HZ	BTU/H	558100	678620
		KCAL/H	134150	165080
		KW	162	190
		USRT	44	55
Power Supply		50HZ	-380V/3PHASE/50HZ
Power		KW	38	45
Refrigeration circuit			1					2
Refrigerant flow control			Thermal Expansion Valve
Refrigerant			R22
Refrigerant	Type		Semi-hermetic Screw
Compressor	Quantity		1	1	1	1	1	2	2	2	2
	Start method		Y-ABStart
	Capacity Control	%	100-75-50-25
Condensation	Type		High-efficiency external copper tube shell and tube
Condensation	Quantity		1	1	1	1	1	2	2	2	2
Cooling water pressure lost		Kpa	39	40	43	45	45	43	40	40	40
Flow rate of cooling water		m²/h	31	34	45	55	61	85	61	74	86
Ecaporator	Type		High-efficiency external copper tube shell and tube
Ecaporator	Quantity		1	1	1	1	1	2	2	2	2
Chilled water pressure lost		Kpa	61	65	67	72	67	65	55	72	55
Flow rate of chilled water			28	31	45	45	55	52	55	74	88
Temperature control			PUNP computer module
Safety protection device			Protection of compressor overheat,Protection of electric current overload. Protection of high, lower pressure, Protection of waterflow, Protection of phase lose, Protection of cooling proof/overheat, Protection of creepage
Pipe size	Chilled water into/out		3	3	3	3	4	4	4	4	5
Pipe size	Cooling water into/out		3	3	3	3	4	4	4	5	5
Machine weight		kg	870	1060	1130	1570	2100	1650	1800	2160	2720
Operation weight		kg	1010	1200	1550	1720	2390	1950	2090	2700	3150
External size		cm	192x82x165	192x82x165	198x85x170	223x85x175	235x95x175	235x95x175	287x95x175	287x95x175	320x95x180
