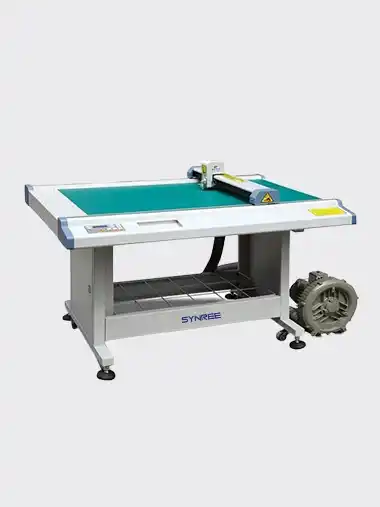

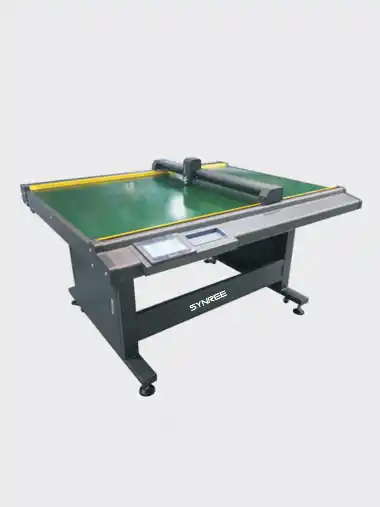

Shoe Pattern Paper Cutting Machine

Cutting and Preparation Section Machines

SRCAM5-1209A-II

The Tools and Functions of CNC Cutting Machine:
2.Multi-functional cutting tool, be able to do complete cutting, half cutting,kiss cutting, and dot cutting.
3.Drawing lines, letters and marking patterns or marks on materials by ball pen or oil pen.

Download Catalog

Features
Additional Info

Adopting American imported CPU and precise electronic component,which guarantees the stability and operability reach world class level.
Adopted Imported linear guide,ensuring high precision pattern cutting. The Cutting accuracy reaches to zero error of to and back from origin point.
With the independently researched and developed embedded embedded CNC system.we own a complete intellectual property, which ensures a sustained product upgrading service. The individualized HMI is beautiful, peroration easy, price—cost ratio high, maintenance cost low.
Accurate laser location device and original precise cutting head, permits the machine can be applied tovarious industries with high accuracy cutting requirements.
Widely applied to industries as footwear, bag, advertisement and printing, and electronics, etc.

Shoe Pattern Paper Cutting Machine specification
Effective working area	1200mm*900mm	Drawing pentype	Gel pen, mark pen, ball pen, silver pen
Cutting speed	0-1200mm/s	Material fix method	Vacuum absorption
Cutting thickness	0.1-3mm	Computer connecting	Rs232serial part, LPT. RJ45 network port
Cutting accuracy	+0.1mm	Software program	HP-GLan GP-GL drive language
Tools	Drawing pen, Knife	Knife property	8 different types of cutting property, half cutting, complete cutting settings
Motor	Digital servo motor	Cutting Material	Plastic sheet, white board, fiber insole, PC electronic film, brown paper, kraft, cardboard parchment, PVC film, electronic film, etc.
Voltage	220V
