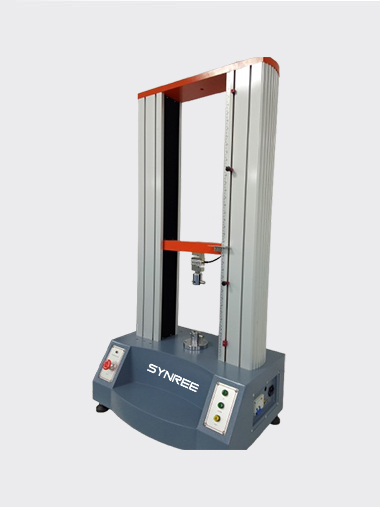

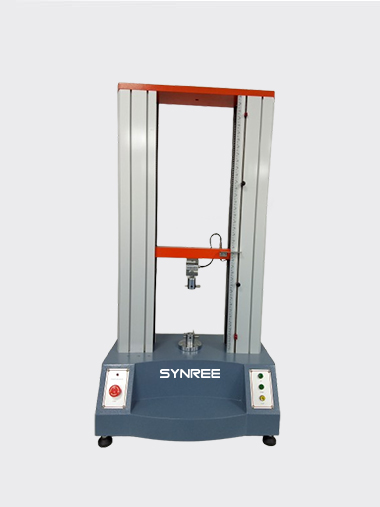

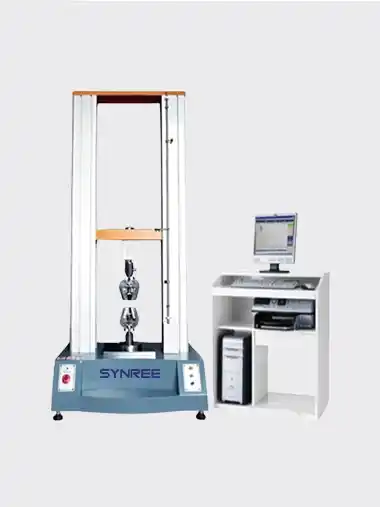

Universal tensile strength testing machine
SR-8002D
Universal tensile strength test equipment for brick is a company designed to aluminum alloy as the main machine, it is not only small, widely used ,less space, elegant appearance, and with rolled base station, makes it all very convenient. In particular, it suitable for production line control of product quality testing equipment. This series is mainly used in the test load is less than 500KG non-metallic and metallic materials within the test.
Main features:
Universal tensile strength test equipment is suitable for all kinds of textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials and products industry to do tensile, compression, bending, shear, peel (90 degrees and 180 degrees), tearing, two extensions (need to reprovision extensometer ) and other tests to determine product quality.
Meet the criteria:
"GB/T16491-1996 electronic universal testing machine"
Applicable industry:
Universal tensile strength test equipment widely used in wire and cable, hardware, electronics, packaging, printing, medical equipment, auto parts, textiles and leather, clothing footwear, rubber products, institutions of higher learning; research laboratories; inspection of arbitration, and technical supervision departments and other industries, is quality management, basic equipment character test.
| Model | SR-8002D Universal tensile strength test equipment |
| Max load | 1KN,2KN,5KN (optional) |
| Accurate grade | 1 grade /0.5 grade |
| Effective measuring range | Force from 0.2% to 100% (1grade) / from 0.4% to 100% (0.5 grade) |
| Measuring accuracy | Tolerance ±1% / tolerance ±0.5% |
| Tester resolution | Max load 1/200000, and constant resolution |
| Load sensor | Basic configuration sensor max load: from four sensors to choose one |
| Effective tensile stroke | 800mm(can be widened according to customers requirement ) |
| Effective testing width | 400mm(can be widened according to customers requirement ) |
| Testing speed | From 0.001 to 500mm/min |
| Accuracy of displacement measurement | Tolerance: ±0.5% / tolerance: ±0.2% |
| safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow ( two speeds to control), can jog |
| Return Back | Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10%,automatic protection |
| fixture | A set of tensile fixture (Per request) |
| Machine size | 1200*530*1800mm(L*W*H) |
| Power system | Servo Motor + Driver + high-precision ball screw |
| Power supply | 220V50HZ or according to the requirement |
| Power | 0.75KW ( depending on different demand of force, using different motor) |
| weight | 300 KG |
| Units | KG,N,LB, TON can be exchanged |
