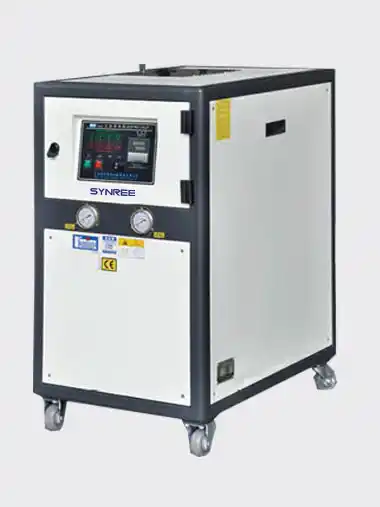

Water Cooled Cased Industrial Chiller
sr-05wci
Air cooled cased chiller with board type evaporator is suitable for the district of lack of water resource and district of poor water quality.
Compressor is used COPELAND Brand which made in the USA.
The industrial chiller is specially designed on purpose to be used in the plastic manufacturing industry.
This equipment can greatly raise the working efficiency of manufacturing machines and obviously improve
the quality of products and thus,earnmore profit.
Applied Machinery
Cooling system of oil temperature, ultrasonic, high frequency machinery.
Cooling system of injection molding machinery, Cooling system of blow molding machinery.
Cooling system of extruder.
Additional equipment for option:
- Starter of timer switch.
- Large type of water filter.
- Protection switch for prove
- the electric leakage.
- Cooling tower and pump.
- The inside safety protection can guarantee the long lasting of the chiller well. The pump is used made in Taiwan and all parts of cooling system are imported from the USA. Mexico, Denmark and Japan
- Equipped with shellpipe condenser and stainless steel cased evaporator, which are quite easy to be cleaned and maintained.Equipped with automatic water supply device in the water-tank, Air cooled cased chiller with board type evaporator is suitable for the district of lack of water resource and district of poor water quality
- Equipped with shellpipe condenser and stainless steel cased evaporator, which are quite easy to be cleaned and maintained.Equipped with automatic water supply device in the water-tank, Air cooled cased chiller with board type evaporator is suitable for the district of lack of water resource and district of poor water quality
- Complete with safety protection and error indication system. including compressor over load, protection, pump over load protection, high pressure and low pressure protection and phase failure protection
- Equipped with figure intellectualized femperature controls, which can accurately measure and control water temperature within the range of 5°C-35°C
Parameters:
| Specifications | Unit | SR-03WCI | SR-05WCI | SR-08WCI | SR-10WCI | SR-12WCI | SR-15WCI | SR-20WCI | SR-25WCI | SR-30WCI | SR-40WCI | SR-50WCI | SR-100WCI |
| Cooling Capacity | Kcal/h | 7580 | 13500 | 21150 | 28000 | 33400 | 41000 | 50000 | 60000 | 77600 | 101780 | 121400 | 246000 |
| Compressor |
| All-closed Vorticity | Screw bar compressor | ||||||||||
| Compressor Power | Kw | 2.5 | 4.4 | 7 | 9 | 10.2 | 13.4 | 18 | 20.4 | 26.8 | 35 | 40 | 74 |
| Refregerant |
| R22 (R407, R502) | |||||||||||
| Chiiled water pump power | Kw | 0.37 | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | 4 | 7.5 | 7.5 | 8 |
| Max flow rate of chilled water | L/min | 90 | 115 | 115 | 123 | 217 | 315 | 315 | 315 | 400 | 600 | 600 | 900 |
| Max pressure | m | 22 | 28 | 28 | 22 | 25 | 25 | 26 | 26 | 50 | 55 | 65 | 60 |
| Flow water inlet & outlet pipe |
| 1" | 1" | 1" | 1.5" | 1.5" | 2" | 2" | 2" | 2.5" | 3" | 3" | 5" |
| Condensing water rate | L/min | >36 | >60 | >100 | >135 | >200 | >200 | >240 | >300 | >300 | >340 | >400 | >800 |
| Chiiled water inlet & outlet pipe |
| 1" | 1" | 1.5" | 1.5" | 1.5" | 2" | 2" | 2" | 2" | 2" | 2" | 4" |
| Size Length | mm | 850 | 850 | 1000 | 1150 | 1250 | 1500 | 1700 | 1700 | 2100 | 2100 | 2300 | 2500 |
| Size Width | mm | 560 | 580 | 750 | 800 | 850 | 900 | 950 | 1000 | 1100 | 1200 | 1400 | 1500 |
| Size Height | mm | 870 | 1040 | 1100 | 1150 | 1050 | 1200 | 1200 | 1300 | 1300 | 1500 | 1500 | 1700 |
| Water tank Capacity | L | 38 | 70 | 130 | 170 | 220 | 260 | 300 | 380 | Non-water box (dry-type) | |||
| Weight | Kg | 160 | 185 | 260 | 300 | 320 | 450 | 630 | 700 | 750 | 860 | 1200 | 2200 |
