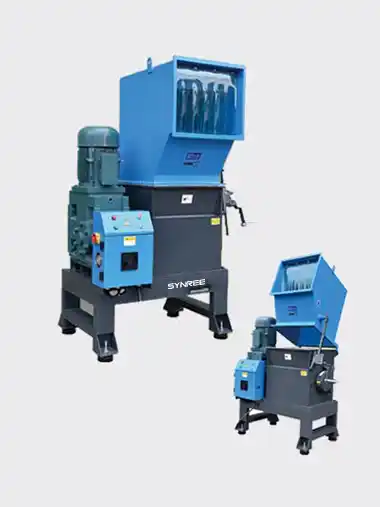

Block Shedder

sr-6032

More imported elements,long using life,promote quality stability.

Applicable to the process of injection molding and extrusion materials produced by blockgate materials crusting,in the case of non-degradable materials,shred the gate material, thus further crushed to use.

Note:

The standard voltage is 3D,380V 50Hz.
Throughputs will be according to shape material.
Have any special needs,please contact us.

Download Catalog

Features
Additional Info

No screen design, saving the time to clean up screen,easier to clean upthe machine. Driect motor reducer(Germany),
the main control electical parts adopt imported famous brand.
Use of sofe miling-type grinding.low noise.small power particle size uniformity.
The hopper can converted three directions, subject to different
places,can choose loading or discharge mode (such as with aggregate box, with fans or conveyor belt feeding the upper and lower materials).
Use of high-power motors to driectly drive reducer rotor blade shaft,smooth and reliable for crushing.
The blades can rotary exchange gour times to use ,easy and long life.

Parameters:

Model		SR-6032
Feeding inlet size	mm	500×500
Rotation diameter	mm	Ø320
Rotor width	mm	600
Motor power	kw	11
Fixed blades	Pcs	2
Rotating blades	Pcs	28
Drive device		Handle
Output	kg-hr	300-600
External size	mm	1100x800x1200
